Description

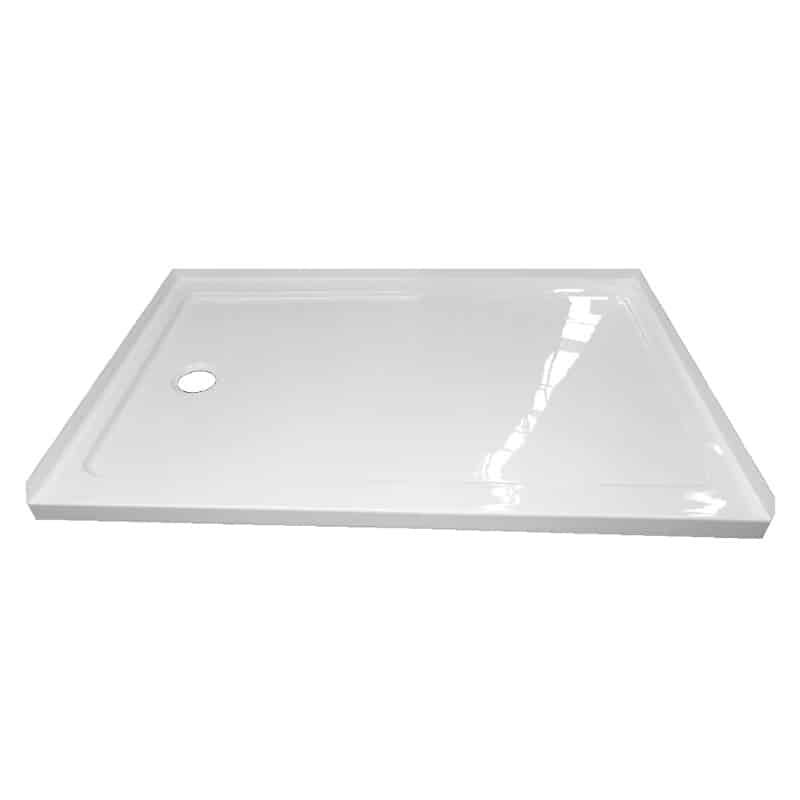

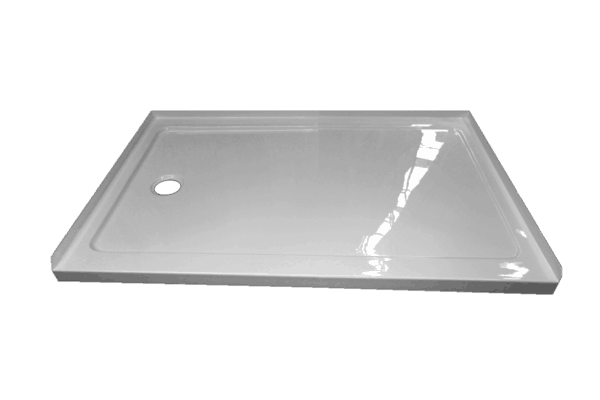

Shower Tray 1400×900 Urban
Features of our Urban Shower tray 1400 x 900mm
There are 6 different 1400 x 900 shower trays
- Made from high-grade white acrylic sheet
- 50mm Low profile tray (front edge)

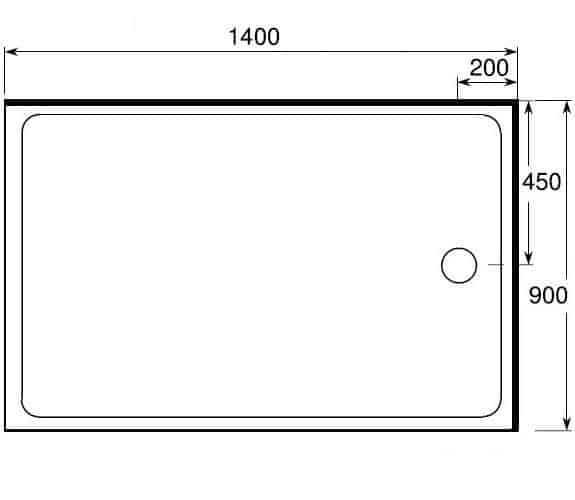

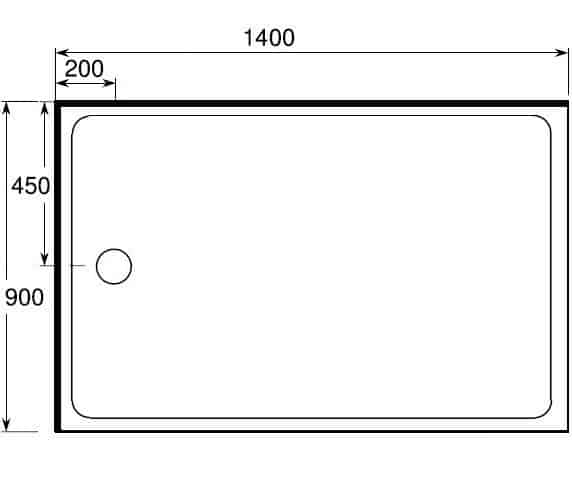

- 2 x 2 walled corner centre end waste installations

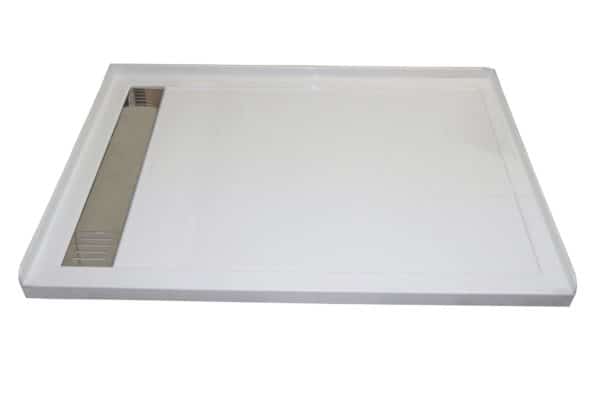

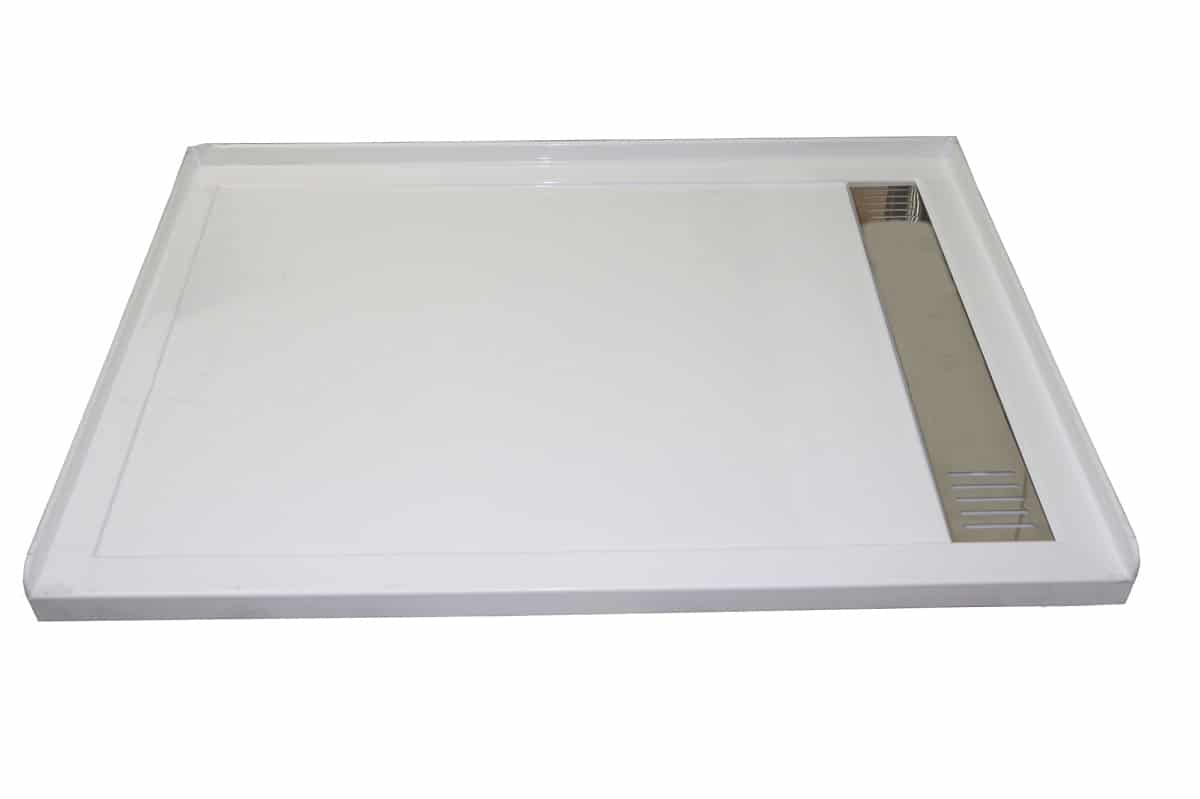

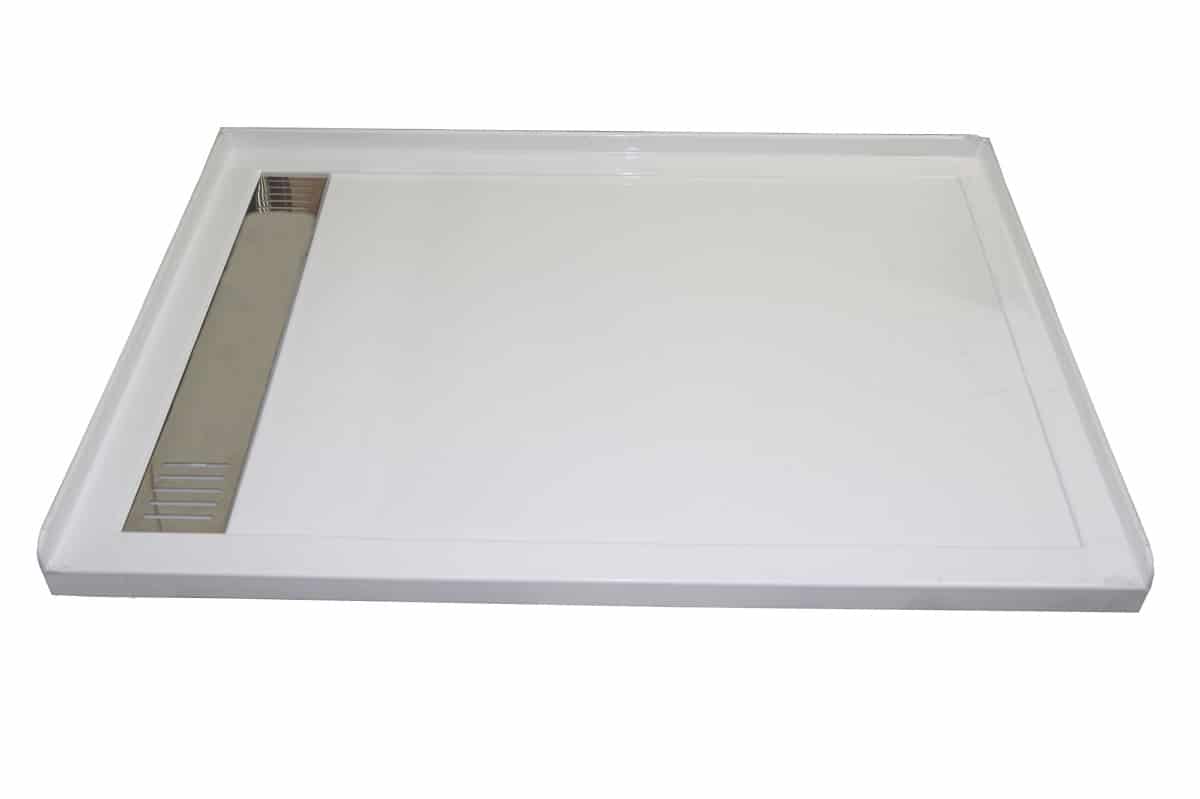

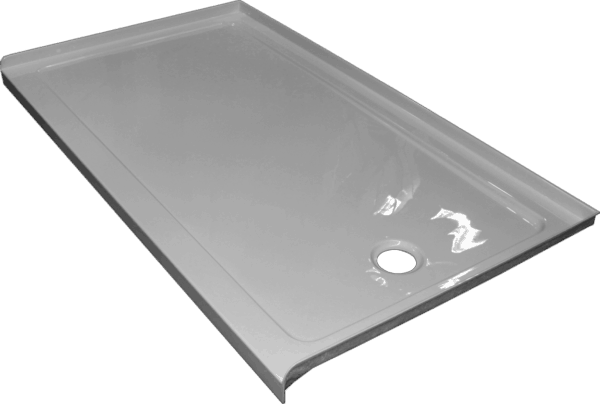

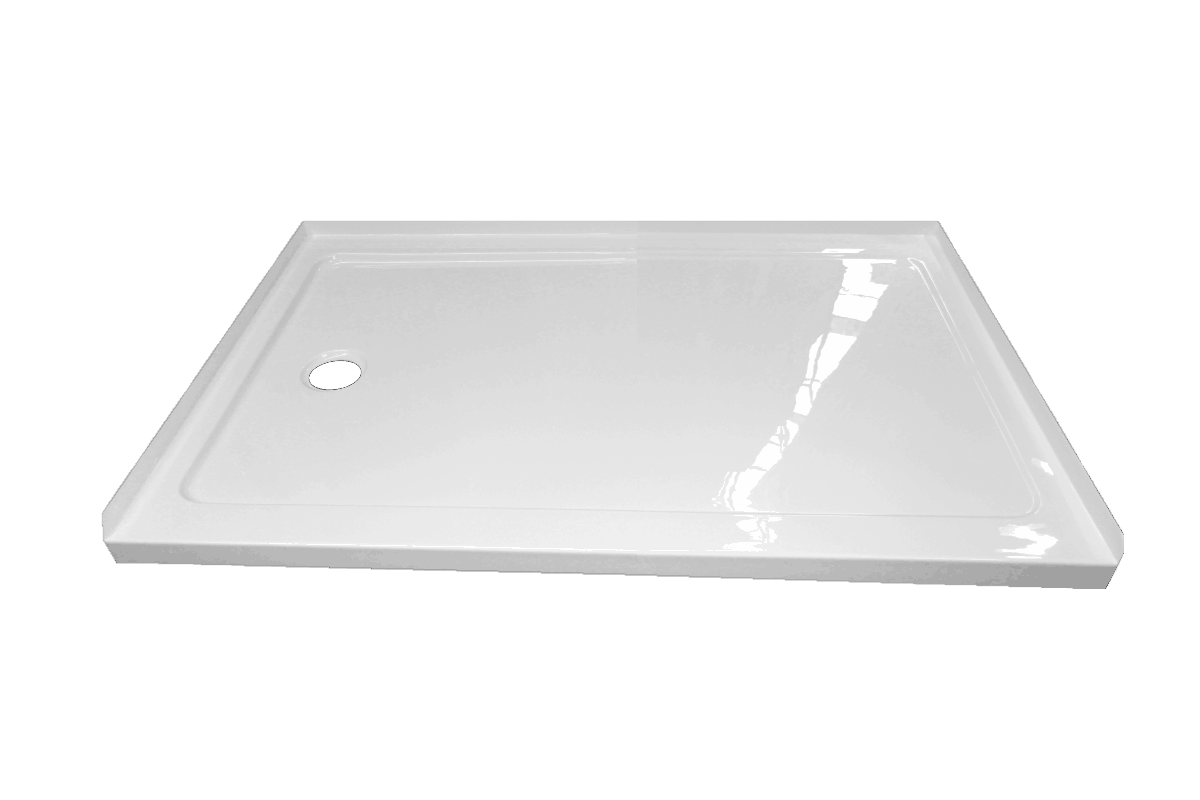

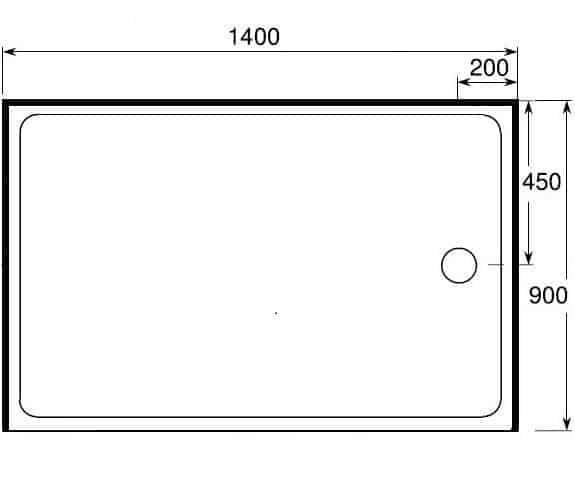

- 2 x 3 walled Alcove end Grate Waste installations

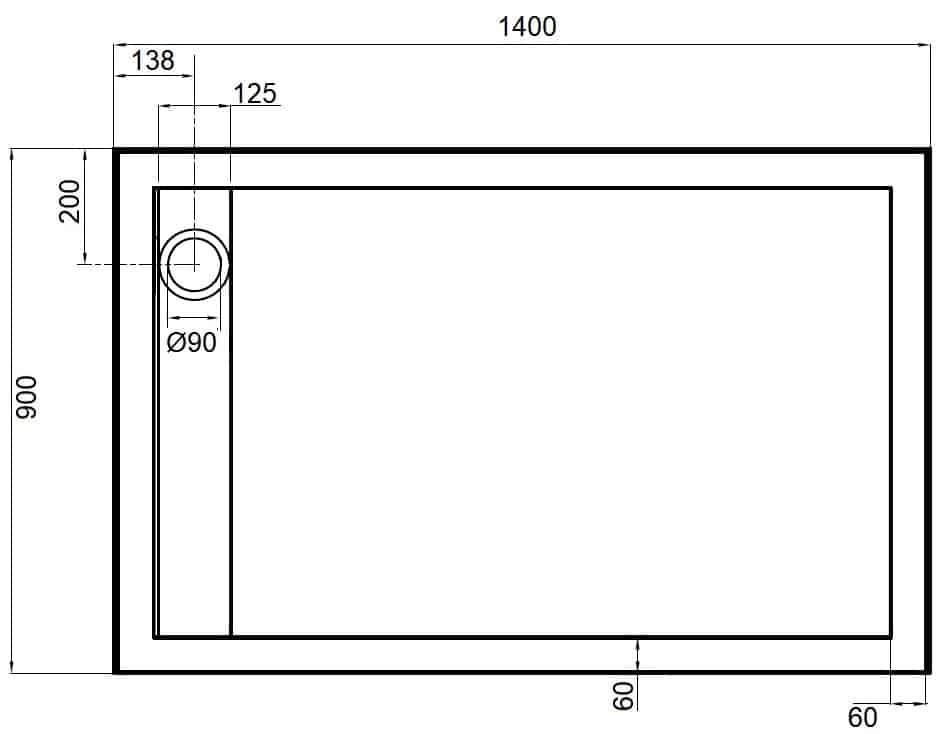

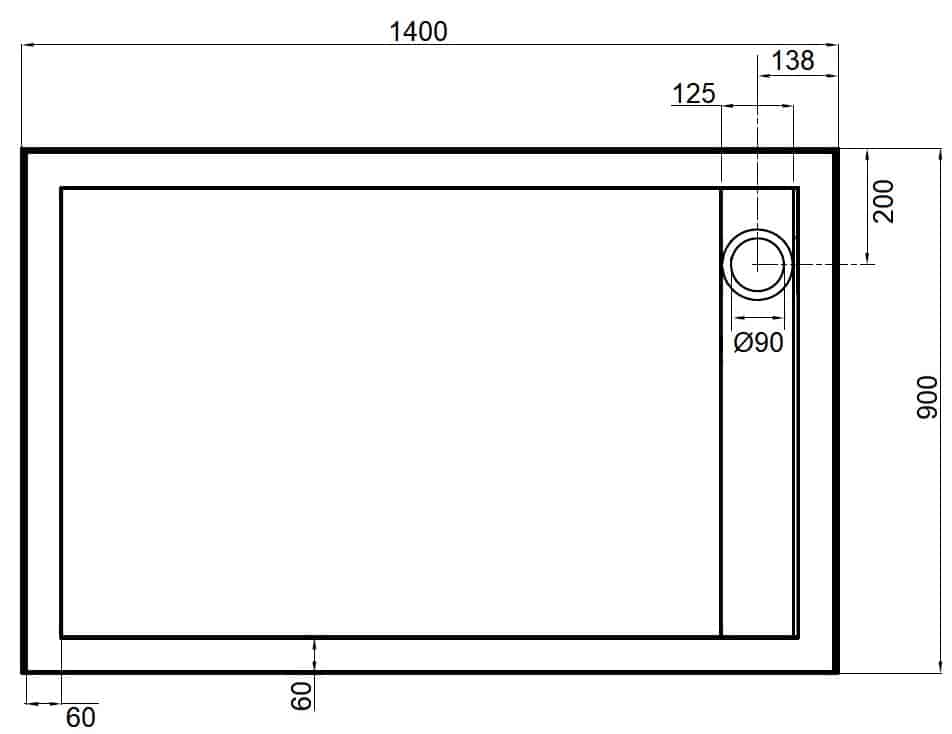

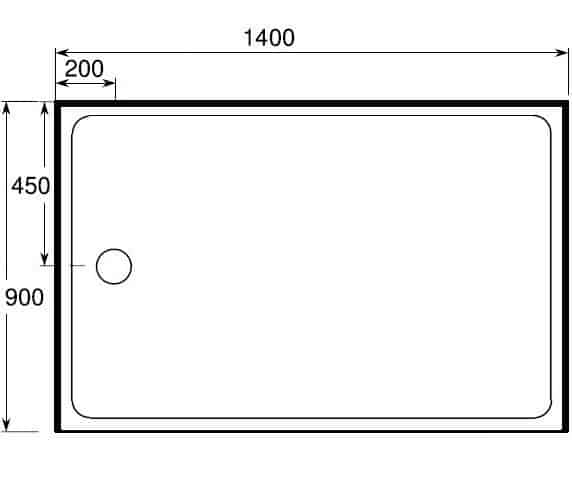

- 1400mm x 900mm Shower Trays
- 40mm high upstands – very waterproof
- Designed for 90mm easy clean wastes
- Fiberglass reinforced acrylic – very strong
- Tested for weights over 300kg
- Shower Tray Tests Henry Brooks 300KG x 10000 cycle test Click to read
- Multiple support feet – no foam to crush or compress
- Stainless Steel Grate Waste cover available on selected models
The Shower Tray 1400×900 is made from a high-quality, hygienic grade white 3.2mm pure acrylic that is formed with an easy clean surface with fall to the 90mm hole suitable for an easy clean waste. This shower tray has a low 50mm step to step over into the tray and also features a 40mm upstand on the sides where your walls will be. On installation, the wall lining comes down over this upstand and forming a waterproof seal with no silicone is visible inside the shower.
Shower Tray 40mm Upstand Detail
Installation Instructions link at bottom of this page
Our extensive experience in renovating bathrooms (since 2000) means we know exactly what is important in shower cubicle design, construction and installation.
Our products are approved by Housing New Zealand as being robust and sturdy, surviving a 200 KG weight being dropped 5000 times onto the shower tray without any structural damage at all.
Optional Easy Clean Waste for the Urban Shower Tray 1400×900Â Easy Clean Waste details here
A Henry Brooks easy clean waste with Chrome Dome lid is available for use with any of our Showers. Essential for easy installations onto concrete floors.
